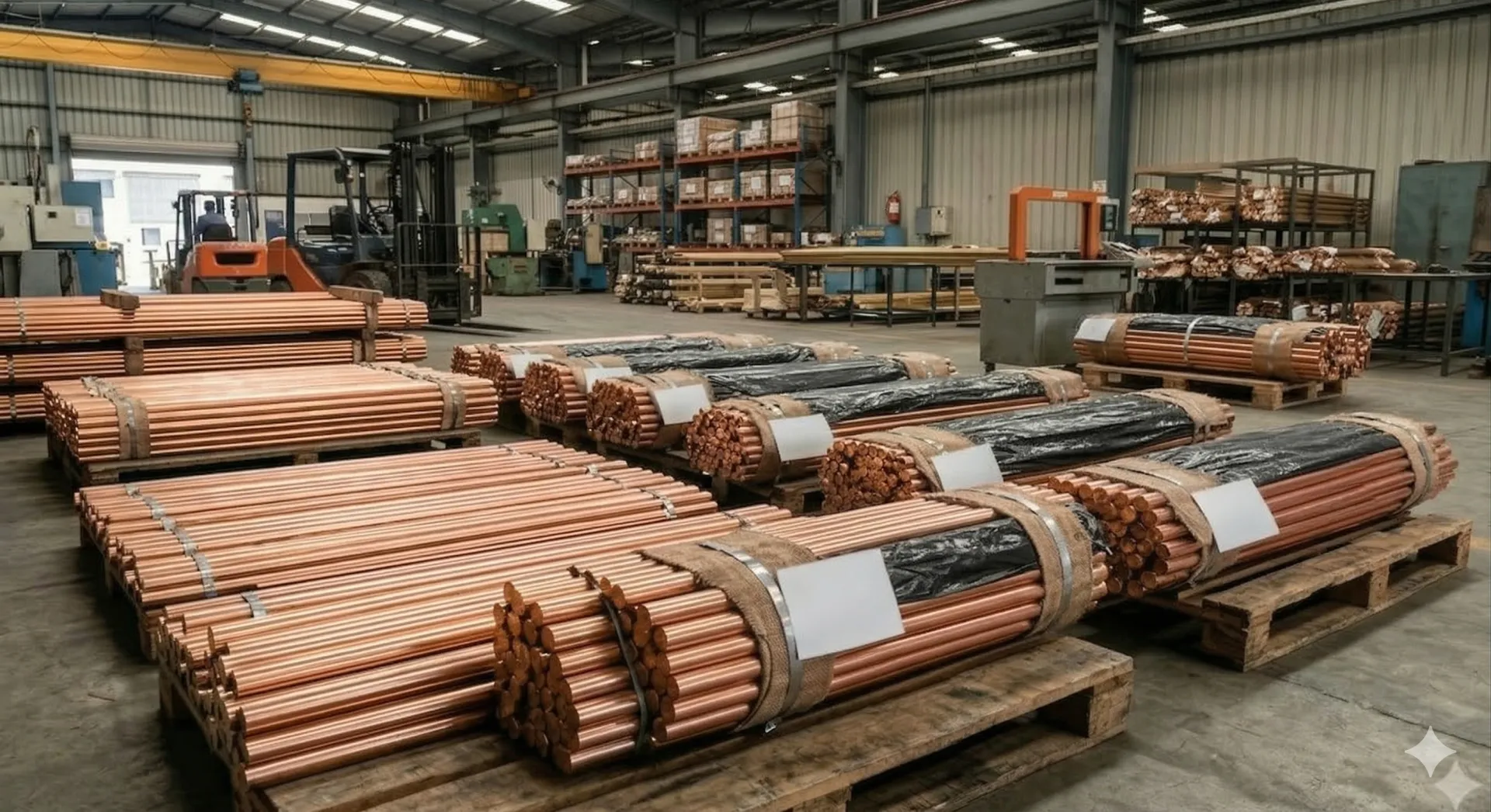

Copper extruded rods

Copper extruded rods

Product Overview

Material :

  •  Copper C11000, C10100, C10200, C12200 (DHP), C12000 (DLP)  Any Special brass material Composition as per Customer Requirement

Size :

  • OD 8.00-110,00mm (Circumscribed Diameter)
  • ID :8.00-60.00mm
  • Length: Max 16ft
  •  Other more other size as per requirement

Function :

  • Used in production of precision turned parts, Brass Profiles are widely used for induction systems and generators, Widely used in manufacturing, mechanical, automotive, automobile and other industries..

CODE NO.

COMMON NAME

COMPOSITIONS
Cu% Pb% P% Fe% 0% Other%
C10100 Ultra-Hight Purity(OFE) ~99.99% < 0.0005% < 0.0003% < 0.001% < 0.0005% < 0.005%
C10200 Oxygen-Free (OF) ~99.99% - - - < 0.001% < 0.03%
C11000 Electrolytic Tough Pitch (ETP) ~99.90% - - - 0.02-0.04% Remain
C12200 Deoxidized High Phosphorus Copper (DHP) ~99.90% - 0.005-0.012% - 0.02-0.05% Remain
C12000 Deoxidized Low Phosphorus Copper (DLP) ~99.90% - 0.015-0.04% - 0.02-0.06% Remain
